Download this R markdown as: R, Rmd.

Loading the data and libraries

library("mffSM")
library("colorspace")

We want to examine a nitrogen concentration measured at various depths of the peat. Load the data peat below and try to understand the design of the underlying experiment. Focus on various depths in particular.

peat <- read.csv("http://www.karlin.mff.cuni.cz/~vavraj/nmfm334/data/peat.csv",
                 header = TRUE, stringsAsFactors = TRUE)
dim(peat)
## [1] 148   3
str(peat)
## 'data.frame':    148 obs. of  3 variables:
##  $ group: Factor w/ 4 levels "CB","CB-VJJ",..: 3 3 3 3 3 3 3 3 3 3 ...
##  $ N    : num  0.738 0.847 1.063 1.142 1.272 ...
##  $ depth: int  2 4 6 8 10 12 14 2 4 6 ...
head(peat)
##   group         N depth
## 1   VJJ 0.7383710     2
## 2   VJJ 0.8473675     4
## 3   VJJ 1.0629922     6
## 4   VJJ 1.1419428     8
## 5   VJJ 1.2721831    10
## 6   VJJ 1.4032890    12
summary(peat)
##     group          N              depth
##  CB    :35   Min.   :0.4989   Min.   : 0.000
##  CB-VJJ:40   1st Qu.:0.8992   1st Qu.: 4.000
##  VJJ   :33   Median :1.0343   Median : 8.000
##  VJJ-CB:40   Mean   :1.0766   Mean   : 7.527
##              3rd Qu.:1.2440   3rd Qu.:12.000
##              Max.   :1.6921   Max.   :14.000

Visual exploration

Basic scatterplot for Nitrogen concentration given depth:

XLAB <- "Depth [cm]"
YLAB <- "Nitrogen concentration [weight %]"

XLIM <- range(peat[, "depth"])
YLIM <- range(peat[, "N"])

par(mfrow = c(1,1), mar = c(4,4,0.5,0.5))
plot(N ~ depth, data = peat, pch = 21, bg = "lightblue",
     xlab = XLAB, ylab = YLAB, xlim = XLIM, ylim = YLIM)

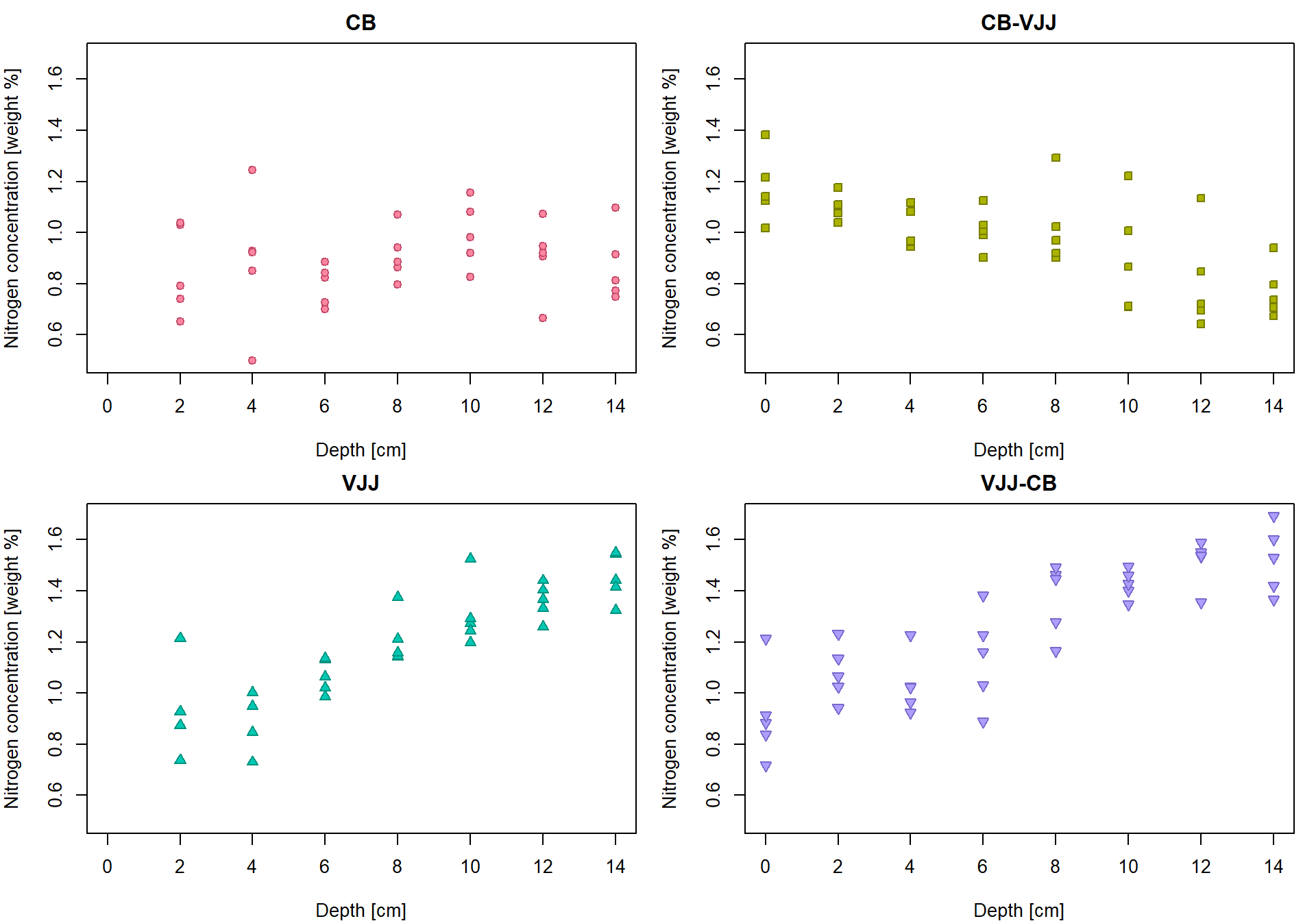

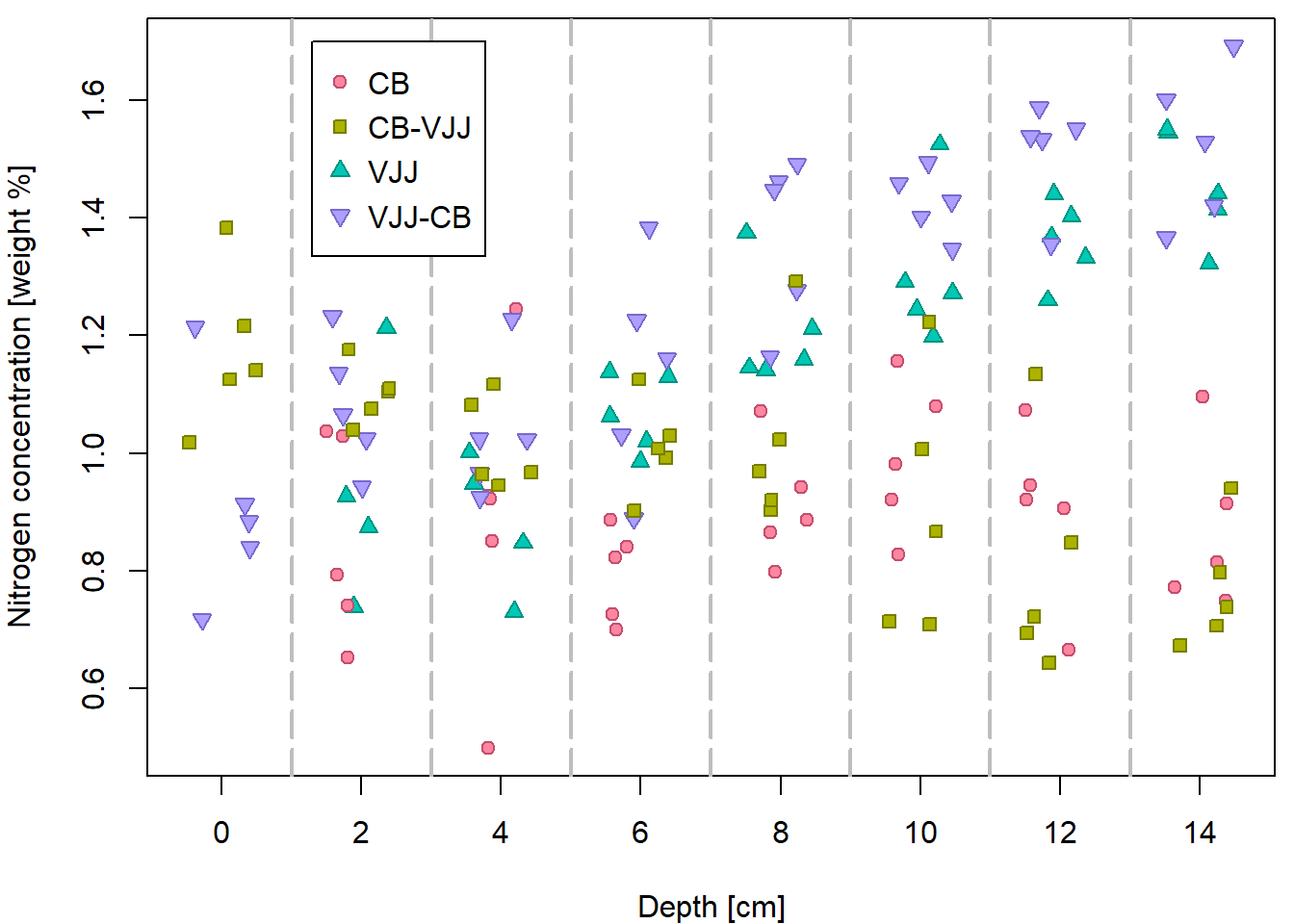

But it can be done better… by distinguishing for different peat types (variable group).

Groups <- levels(peat[, "group"])
print(Groups)
## [1] "CB"     "CB-VJJ" "VJJ"    "VJJ-CB"
PCH <- c(21, 22, 24, 25)
DARK <- rainbow_hcl(4, c = 80, l = 35)
COL <- rainbow_hcl(4, c = 80, l = 50)
BGC <- rainbow_hcl(4, c = 80, l = 70)
names(PCH) <- names(DARK) <- names(COL) <- names(BGC) <- Groups

par(mfrow = c(2,2), mar = c(4,4,2,1))
for(g in Groups){
  plot(N ~ depth, data = subset(peat, group == g),
       pch = PCH[g], col = COL[g], bg = BGC[g],
       xlab = XLAB, ylab = YLAB, main = g, xlim = XLIM, ylim = YLIM)
}

Conditional empirical characteristics by groups

tabs <- list()
# g <- 1 # run for one g
for(g in 1:length(Groups)){
  # data subset containing only the g-th group
  subdata <- subset(peat, group == Groups[g])
  # averages for particular depths
  Mean    <- with(subdata, tapply(N, depth, mean))
  # standard deviations for particular depths
  StdDev  <- with(subdata, tapply(N, depth, sd))
  # numbers of observations for particular depths
  ns      <- with(subdata, tapply(N, depth, length))

  # cat("\n",Groups[g],"\n")
  # print(Mean)
  # print(StdDev)
  # print(ns)

  tabs[[g]] <- data.frame(Depth = as.numeric(names(Mean)),
                          Mean = Mean,
                          Std.Dev = StdDev,
                          n = ns)
  rownames(tabs[[g]]) <- 1:nrow(tabs[[g]])
}
names(tabs) <- Groups
print(tabs)
## $CB
##   Depth      Mean    Std.Dev n
## 1     2 0.8504320 0.17437100 5
## 2     4 0.8885866 0.26575319 5
## 3     6 0.7951133 0.07905635 5
## 4     8 0.9122869 0.10257331 5
## 5    10 0.9930867 0.12950782 5
## 6    12 0.9024869 0.14771465 5
## 7    14 0.8694117 0.14202920 5
##
## $`CB-VJJ`
##   Depth      Mean    Std.Dev n
## 1     0 1.1769177 0.13512002 5
## 2     2 1.1011507 0.05042430 5
## 3     4 1.0153398 0.07849447 5
## 4     6 1.0113715 0.08000427 5
## 5     8 1.0215852 0.15842290 5
## 6    10 0.9036023 0.21677703 5
## 7    12 0.8086419 0.19742942 5
## 8    14 0.7710349 0.10510728 5
##
## $VJJ
##   Depth      Mean    Std.Dev n
## 1     2 0.9381259 0.19972666 4
## 2     4 0.8817402 0.11941469 4
## 3     6 1.0673126 0.06671083 5
## 4     8 1.2065316 0.09810094 5
## 5    10 1.3061741 0.12734137 5
## 6    12 1.3610624 0.06927207 5
## 7    14 1.4549562 0.09526403 5
##
## $`VJJ-CB`
##   Depth      Mean    Std.Dev n
## 1     0 0.9132266 0.18371658 5
## 2     2 1.0804183 0.10997845 5
## 3     4 1.0331289 0.11638281 5
## 4     6 1.1380384 0.18806905 5
## 5     8 1.3685547 0.14144116 5
## 6    10 1.4260073 0.05603573 5
## 7    12 1.5131996 0.09093290 5
## 8    14 1.5221417 0.13197782 5

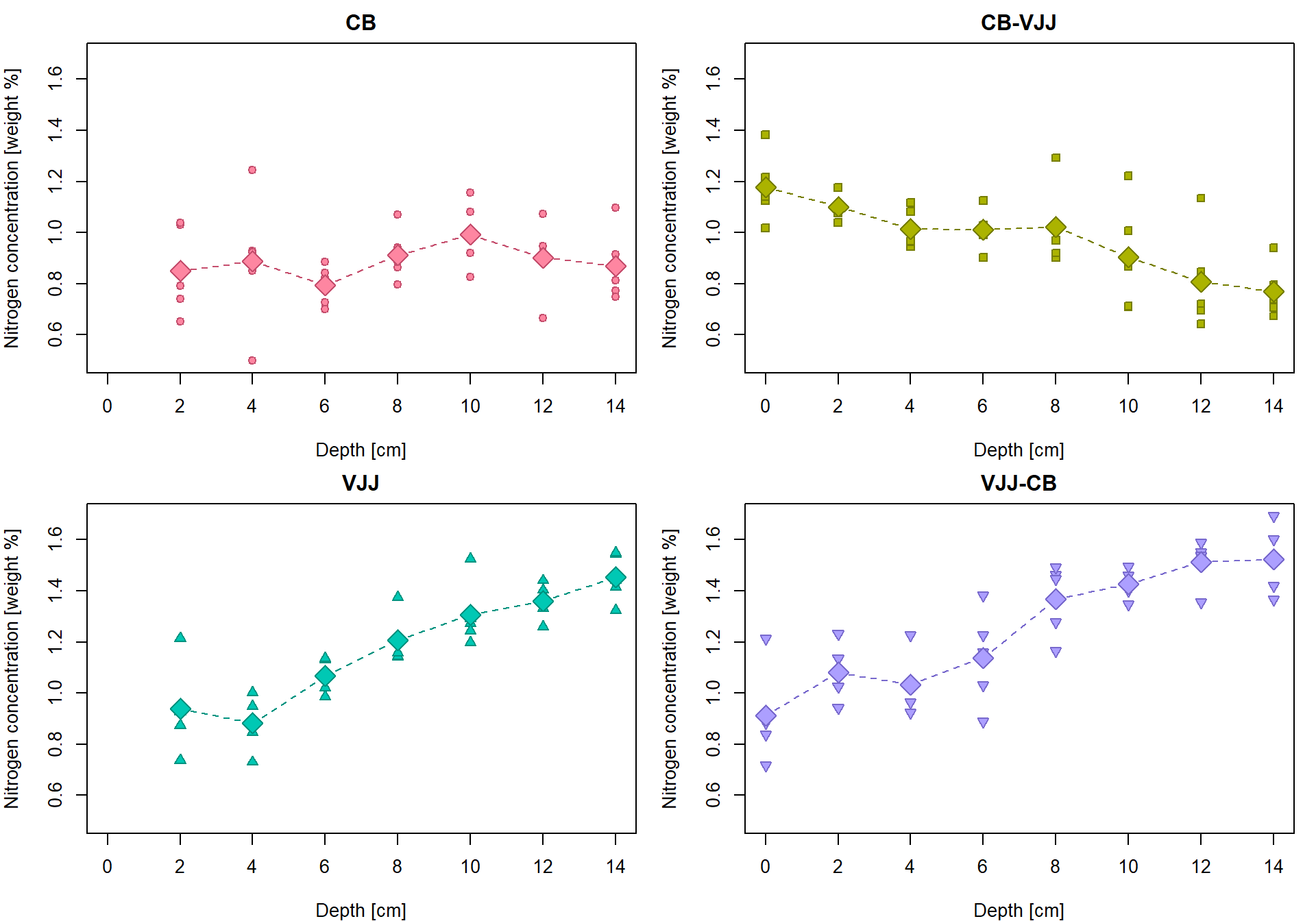

Insert the group averages into the original plot

par(mfrow = c(2,2), mar = c(4,4,2,1))
for (g in Groups){
  plot(N ~ depth, data = subset(peat, group == g),
       pch = PCH[g], col = COL[g], bg = BGC[g],
       xlab = XLAB, ylab = YLAB, main = g, xlim = XLIM, ylim = YLIM)
  lines(tabs[[g]][, "Depth"], tabs[[g]][, "Mean"], type = "b",
        pch = 23, lty = 2, cex = 2, col = COL[g], bg = BGC[g])
}

Linear regression line for the group “CB-VJJ”

g <- "CB-VJJ"
n <- sum(peat$group == g)

We will assume a linear relationship between depth and Nitrogen concentration for each group separately. First, we focus on group CB-VJJ. Let \(Y_i\) be the Nitrogen concentration measured in depth \(X_i\), where \(i\) is the index of the observation. Then,

\[ Y_i = a + b X_i + \varepsilon_i \qquad i = 1, \dots, n = 40, \] where \(a, b \in \mathbb{R}\) are unknown parameters (intercept and slope) and \(\varepsilon_i\) stands for error terms of the model.

Yvalues <- peat$N[peat$group == g]
Xvalues <- peat$depth[peat$group == g]

line <- function(a, b, x){
# a simple line parametrization with the intercept 'a' and the slope `b`
  return(a + b * x)
}

We define sum of squares as \[ \mathsf{SS}(a,b) = \sum\limits_{i=1}^n (Y_i - a - b X_i)^2 \] and define the least-squares estimator as \(\widehat{a}_n\) and \(\widehat{b}_n\) such that they minimize the sum of squares: \[ (\widehat{a}_n, \widehat{b}_n) = \arg\min \mathsf{SS}(a, b). \] One option how to compute the estimates would be through optimizers in R:

SS <- function(coef, x = Xvalues, y = Yvalues){
  sum((y - line(coef[1], coef[2], x))^2)
}
lse <- optim(par = c(0,0), fn = SS)
(lse0 <- lse$par)
## [1]  1.16910463 -0.02756412

However, this general-purpose optimizer is in-efficient for such simple task. From lectures we know that the least squares estimator can be found explicitly as a solution of the following pair of equations: \[ \begin{pmatrix} n & \sum\limits_{i=1}^n X_i \\ \sum\limits_{i=1}^n X_i & \sum\limits_{i=1}^n X_i^2 \end{pmatrix} \begin{pmatrix} a \\ b \end{pmatrix} = \begin{pmatrix} \sum\limits_{i=1}^n Y_i \\ \sum\limits_{i=1}^n X_i Y_i \end{pmatrix} \] as \[ \begin{pmatrix} \widehat{a}_n \\ \widehat{b}_n \end{pmatrix} = \begin{pmatrix} n & \sum\limits_{i=1}^n X_i \\ \sum\limits_{i=1}^n X_i & \sum\limits_{i=1}^n X_i^2 \end{pmatrix}^{-1} \begin{pmatrix} \sum\limits_{i=1}^n Y_i \\ \sum\limits_{i=1}^n X_i Y_i \end{pmatrix} = \frac{1}{n\sum\limits_{i=1}^n X_i^2 - \left(\sum\limits_{i=1}^n X_i\right)^2} \begin{pmatrix} \sum\limits_{i=1}^n X_i^2 & -\sum\limits_{i=1}^n X_i \\ -\sum\limits_{i=1}^n X_i & n \end{pmatrix} \begin{pmatrix} \sum\limits_{i=1}^n Y_i \\ \sum\limits_{i=1}^n X_i Y_i \end{pmatrix}. \] Replacing the sums with means \(\,\overline{X}_n = \frac{1}{n} \sum\limits_{i=1}^n X_i\), \(\,\overline{X^2}_n = \frac{1}{n} \sum\limits_{i=1}^n X_i^2\), \(\,\overline{Y}_n = \frac{1}{n} \sum\limits_{i=1}^n Y_i\,\) and \(\,\overline{XY}_n = \frac{1}{n} \sum\limits_{i=1}^n X_i Y_i\) we get \[ \begin{pmatrix} \widehat{a}_n \\ \widehat{b}_n \end{pmatrix} = \frac{1}{\overline{X^2}_n - \left(\overline{X}_n\right)^2} \begin{pmatrix} \overline{X^2}_n & -\overline{X}_n \\ -\overline{X}_n & 1 \end{pmatrix} \begin{pmatrix} \overline{Y}_n \\ \overline{XY}_n \end{pmatrix}. \] Manual calculation in R would follow these steps:

meanX  <- mean(Xvalues)
meanX2 <- mean(Xvalues^2)
meanY  <- mean(Yvalues)
meanXY <- mean(Xvalues * Yvalues)

A = matrix(c(1, meanX, meanX, meanX2), nrow = 2)
Ainv = solve(A)               # general inverse matrix (solution to A %*% x = b)
Achol2inv = chol2inv(chol(A)) # numerically stable inversion for symmetric positive definite matrices
Ainv_man = matrix(c(meanX2, -meanX, -meanX, 1), nrow = 2) / (meanX2 - meanX^2)
all.equal(Ainv, Achol2inv) # the same inverse matrix
## [1] TRUE
all.equal(Ainv, Ainv_man)  # the same inverse matrix
## [1] TRUE
lse1 <- as.numeric(Ainv %*% c(meanY, meanXY))
lse2 <- solve(A, c(meanY, meanXY))
all.equal(lse1, lse2)
## [1] TRUE
all.equal(lse0, lse1) # iteration method by optim is precise only up to some tolerance
## [1] "Mean relative difference: 4.000993e-05"
# Compare also with
b <- cov(Xvalues, Yvalues) / var(Xvalues)
a <- meanY - b * meanX
all.equal(lse1, c(a, b))
## [1] TRUE

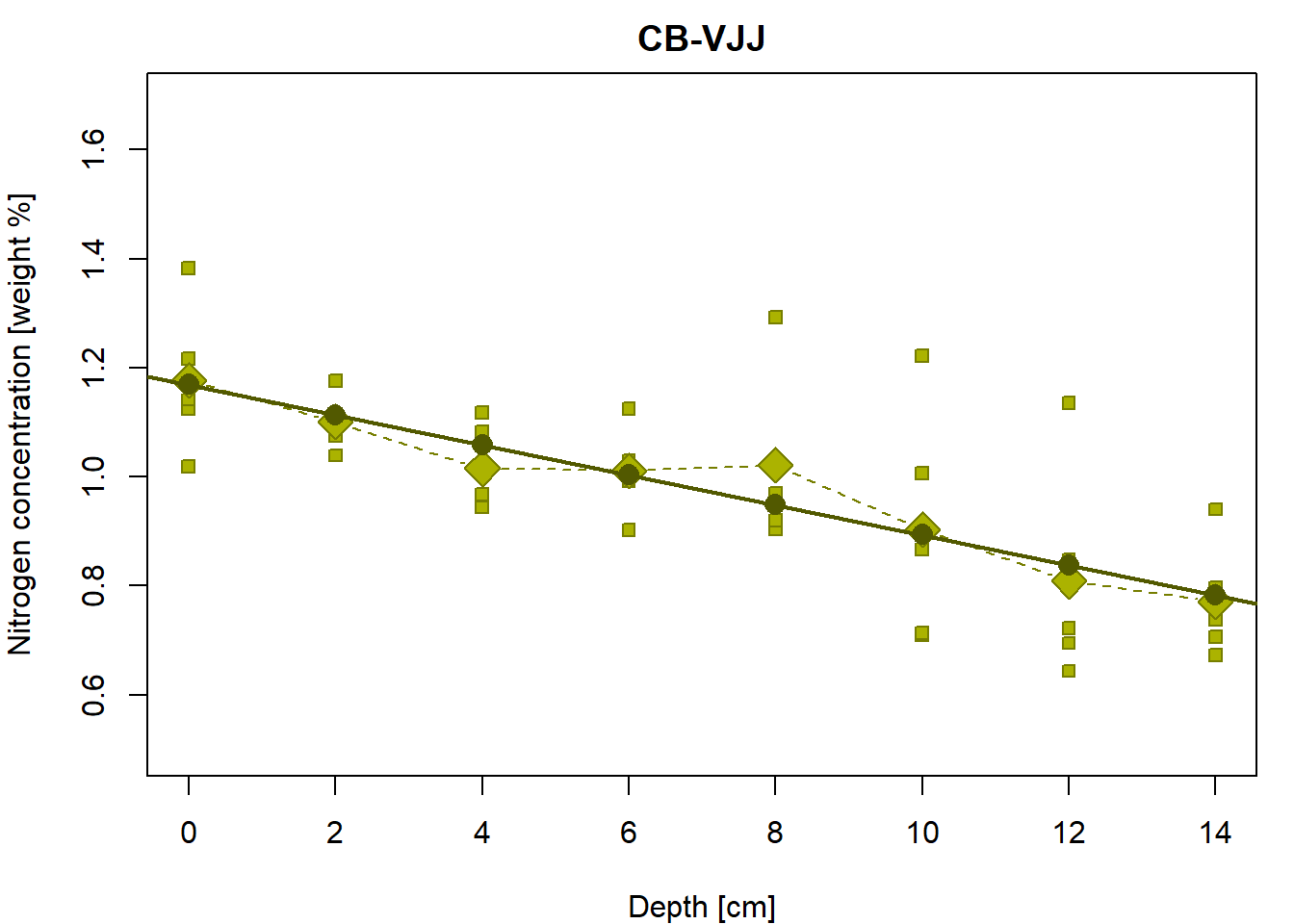

We can plot the estimated line and check how much the empirical means for each depth value deviate from this line:

par(mfrow = c(1,1), mar = c(4,4,2,1))
# the underlying data
plot(Yvalues ~ Xvalues, pch = PCH[g], col = COL[g], bg = BGC[g],
     xlab = XLAB, ylab = YLAB, main = g, xlim = XLIM, ylim = YLIM)
# empirical group means
lines(tabs[[g]][, "Depth"], tabs[[g]][, "Mean"], type = "b",
      pch = 23, lty = 2, cex = 2, col = COL[g], bg = BGC[g])
# regression line given by the LS estimates (for the specific values of the depth)
points(line(lse1[1], lse1[2], Xvalues) ~ Xvalues,
       pch = 16, col = DARK[g], bg = BGC[g],  cex = 1.5)
# regression line by the 'lm()' function (for the whole real line)
abline(a = lse1[1], b = lse1[2], col = DARK[g], lwd = 2)

# abline(lm(Yvalues ~ Xvalues), col = DARK[g], lwd = 2)

From now on, we will always compute the least-squares estimator via lm (linear model):

fit1 <- lm(N ~ depth, data = peat, subset = (group == g))
print(fit1)
##
## Call:
## lm(formula = N ~ depth, data = peat, subset = (group == g))
##
## Coefficients:
## (Intercept)        depth
##     1.16907     -0.02755

Object fit1 contains many interesting quantities… fit1 is in fact a list and its components are accessible either as fit1[["COMPONENT"]] or as fit1$COMPONENT

names(fit1)
##  [1] "coefficients"  "residuals"     "effects"       "rank"          "fitted.values" "assign"
##  [7] "qr"            "df.residual"   "xlevels"       "call"          "terms"         "model"

Estimated coefficients (intercept \(\widehat{a}_n\) and slope \(\widehat{b}_n\)):

fit1[["coefficients"]]
## (Intercept)       depth
##  1.16906895 -0.02755192
fit1$coefficients
## (Intercept)       depth
##  1.16906895 -0.02755192
coef(fit1)
## (Intercept)       depth
##  1.16906895 -0.02755192
all.equal(unname(coef(fit1)), lse1)
## [1] TRUE

Fitted values are predictions \(\widehat{Y}_i = \widehat{a}_n + \widehat{b}_n X_i\):

fit1[["fitted.values"]]
##       109       110       111       112       113       114       115       116       117       118       119
## 1.1690689 1.1139651 1.0588613 1.0037574 0.9486536 0.8935497 0.8384459 0.7833421 1.1690689 1.1139651 1.0588613
##       120       121       122       123       124       125       126       127       128       129       130
## 1.0037574 0.9486536 0.8935497 0.8384459 0.7833421 1.1690689 1.1139651 1.0588613 1.0037574 0.9486536 0.8935497
##       131       132       133       134       135       136       137       138       139       140       141
## 0.8384459 0.7833421 1.1690689 1.1139651 1.0588613 1.0037574 0.9486536 0.8935497 0.8384459 0.7833421 1.1690689
##       142       143       144       145       146       147       148
## 1.1139651 1.0588613 1.0037574 0.9486536 0.8935497 0.8384459 0.7833421
fitted(fit1)
##       109       110       111       112       113       114       115       116       117       118       119
## 1.1690689 1.1139651 1.0588613 1.0037574 0.9486536 0.8935497 0.8384459 0.7833421 1.1690689 1.1139651 1.0588613
##       120       121       122       123       124       125       126       127       128       129       130
## 1.0037574 0.9486536 0.8935497 0.8384459 0.7833421 1.1690689 1.1139651 1.0588613 1.0037574 0.9486536 0.8935497
##       131       132       133       134       135       136       137       138       139       140       141
## 0.8384459 0.7833421 1.1690689 1.1139651 1.0588613 1.0037574 0.9486536 0.8935497 0.8384459 0.7833421 1.1690689
##       142       143       144       145       146       147       148
## 1.1139651 1.0588613 1.0037574 0.9486536 0.8935497 0.8384459 0.7833421
Yhat = coef(fit1)[1] + coef(fit1)[2] * Xvalues
all.equal(Yhat, unname(fitted(fit1)))
## [1] TRUE
all.equal(Yhat, unname(predict(fit1)))
## [1] TRUE

Residuals \(U_i = Y_i - \widehat{Y}_i\) are the differences between true and fitted values:

fit1[["residuals"]]
##          109          110          111          112          113          114          115          116
## -0.043626454 -0.009146158 -0.113661218 -0.101297614 -0.045700761 -0.184710673 -0.194907119 -0.110233646
##          117          118          119          120          121          122          123          124
## -0.150838933 -0.003993299  0.023491705 -0.012196205  0.074187174  0.113268543  0.009912453  0.013481456
##          125          126          127          128          129          130          131          132
##  0.047741778 -0.074664484 -0.094067519  0.121601286  0.343741240  0.329024967  0.296564845  0.157087576
##          133          134          135          136          137          138          139          140
##  0.213629523  0.062043179 -0.091651399  0.003870787  0.020785509 -0.026919068 -0.143776424 -0.076927619
##          141          142          143          144          145          146          147          148
## -0.027662155 -0.038311109  0.058281214  0.026092004 -0.028354961 -0.180401010 -0.116813908 -0.044943502
residuals(fit1)
##          109          110          111          112          113          114          115          116
## -0.043626454 -0.009146158 -0.113661218 -0.101297614 -0.045700761 -0.184710673 -0.194907119 -0.110233646
##          117          118          119          120          121          122          123          124
## -0.150838933 -0.003993299  0.023491705 -0.012196205  0.074187174  0.113268543  0.009912453  0.013481456
##          125          126          127          128          129          130          131          132
##  0.047741778 -0.074664484 -0.094067519  0.121601286  0.343741240  0.329024967  0.296564845  0.157087576
##          133          134          135          136          137          138          139          140
##  0.213629523  0.062043179 -0.091651399  0.003870787  0.020785509 -0.026919068 -0.143776424 -0.076927619
##          141          142          143          144          145          146          147          148
## -0.027662155 -0.038311109  0.058281214  0.026092004 -0.028354961 -0.180401010 -0.116813908 -0.044943502
Res = c(Yvalues - Yhat)
all.equal(Res, unname(residuals(fit1)))
## [1] TRUE

Residual sum of squares \(\mathsf{RSS} = \sum\limits_{i=1}^n U_i^2\):

(RSS = sum(fit1$residuals^2))
## [1] 0.665101
all.equal(RSS, deviance(fit1))
## [1] TRUE

Degrees of freedom (number of observations - rank):

fit1$rank
## [1] 2
(df = n-2)
## [1] 38
all.equal(df, fit1$df.residual)
## [1] TRUE

Residual variance \(\widehat{\sigma}_n^2 = \frac{1}{n-2} \mathsf{RSS}\):

(res_var <- RSS / df)
## [1] 0.01750266

Residual standard error \(\mathsf{RSE} = \widehat{\sigma}_n = \sqrt{\frac{1}{n-2} \mathsf{RSS}}\):

(RSE <- sqrt(res_var))
## [1] 0.1322976

Total sum of squares \(\mathsf{SST} = \sum\limits_{i=1}^n \left(Y_i - \overline{Y}_n\right)^2\):

(SST = sum((Yvalues - meanY)^2))
## [1] 1.302752
all.equal(SST, RSS + sum((Yhat - meanY)^2)) # total squares decomposition
## [1] TRUE

Multiple \(R^2\) is defined as proportion of explained variability \(R^2 = 1 - \frac{\mathsf{RSS}}{\mathsf{SST}}\)

(R2 = 1 - RSS/SST)
## [1] 0.4894646
all.equal(R2, sum((Yhat - meanY)^2) / SST) # from decomposition
## [1] TRUE
# In model with simple line it also holds:
all.equal(R2, cor(Xvalues, Yvalues)^2)
## [1] TRUE

Some useful quantities are not provided by fit1 object, but by its summary:

(sumfit1 <- summary(fit1))
##
## Call:
## lm(formula = N ~ depth, data = peat, subset = (group == g))
##
## Residuals:
##      Min       1Q   Median       3Q      Max
## -0.19491 -0.09226 -0.01956  0.05038  0.34374
##
## Coefficients:
##              Estimate Std. Error t value Pr(>|t|)
## (Intercept)  1.169069   0.038191  30.611  < 2e-16 ***
## depth       -0.027552   0.004565  -6.036 5.08e-07 ***
## ---
## Signif. codes:  0 '***' 0.001 '**' 0.01 '*' 0.05 '.' 0.1 ' ' 1
##
## Residual standard error: 0.1323 on 38 degrees of freedom
## Multiple R-squared:  0.4895, Adjusted R-squared:  0.476
## F-statistic: 36.43 on 1 and 38 DF,  p-value: 5.083e-07
all.equal(sumfit1$sigma, RSE)
## [1] TRUE
all.equal(sumfit1$r.squared, R2)
## [1] TRUE
all.equal(unname(sumfit1$fstatistic["value"]), sum((Yhat - meanY)^2) / (2-1) / RSS * df)
## [1] TRUE

First summary is simple summary of the residuals:

summary(Res)
##     Min.  1st Qu.   Median     Mean  3rd Qu.     Max.
## -0.19491 -0.09226 -0.01956  0.00000  0.05038  0.34374

The estimated variance-covariance matrix for the least-squares estimator is computed as \[ \widehat{\sigma}_n^2 \begin{pmatrix} n & \sum\limits_{i=1}^n X_i \\ \sum\limits_{i=1}^n X_i & \sum\limits_{i=1}^n X_i^2 \end{pmatrix}^{-1} = \frac{1}{n} \frac{\widehat{\sigma}_n^2}{\overline{X^2}_n - \left(\overline{X}_n\right)^2} \begin{pmatrix} \overline{X^2}_n & -\overline{X}_n \\ -\overline{X}_n & 1 \end{pmatrix} \]

vcov(fit1)
##               (Intercept)         depth
## (Intercept)  0.0014585549 -0.0001458555
## depth       -0.0001458555  0.0000208365
(varcov <- res_var * Ainv / n)
##               [,1]          [,2]
## [1,]  0.0014585549 -0.0001458555
## [2,] -0.0001458555  0.0000208365
all.equal(varcov, unname(vcov(fit1)))
## [1] TRUE

Standard error terms (square root of the diagonal)

sumfit1$coefficients[,"Std. Error"]
## (Intercept)       depth
## 0.038191032 0.004564701
(SEs <- sqrt(diag(varcov)))
## [1] 0.038191032 0.004564701
all.equal(SEs, unname(sumfit1$coefficients[,"Std. Error"]))
## [1] TRUE

Correlation matrix derived from vcov(fit1)

cov2cor(vcov(fit1))
##             (Intercept)    depth
## (Intercept)     1.00000 -0.83666
## depth          -0.83666  1.00000

Confidence intervals for regression coefficients

confint(fit1, level= 0.95)
##                   2.5 %      97.5 %
## (Intercept)  1.09175525  1.24638265
## depth       -0.03679268 -0.01831117
cbind(lse1 - qt(0.975, df) * SEs,
      lse1 + qt(0.975, df) * SEs)
##             [,1]        [,2]
## [1,]  1.09175525  1.24638265
## [2,] -0.03679268 -0.01831117

Intercept only model for the group “CB-VJJ”

Another regression line is used to fit the same data. What is the main difference between fit1 and fit0?

fit0 <- lm(N ~ 1, data = peat, subset = (group == g))
summary(fit0)
##
## Call:
## lm(formula = N ~ 1, data = peat, subset = (group == g))
##
## Residuals:
##      Min       1Q   Median       3Q      Max
## -0.33267 -0.11414  0.02298  0.13556  0.40649
##
## Coefficients:
##             Estimate Std. Error t value Pr(>|t|)
## (Intercept)   0.9762     0.0289   33.78   <2e-16 ***
## ---
## Signif. codes:  0 '***' 0.001 '**' 0.01 '*' 0.05 '.' 0.1 ' ' 1
##
## Residual standard error: 0.1828 on 39 degrees of freedom

The model fits the regression line which is always parallel with the x-axis (thus, the slope is always zero)

constant <- function(a, x){
# a simple line parametrization with the intercept 'a' and zero slope
  return(a + 0 * x)
}

# the same Y values for each X value... why?
constant(fit0$coefficients[1], Xvalues)
##  [1] 0.9762055 0.9762055 0.9762055 0.9762055 0.9762055 0.9762055 0.9762055 0.9762055 0.9762055 0.9762055
## [11] 0.9762055 0.9762055 0.9762055 0.9762055 0.9762055 0.9762055 0.9762055 0.9762055 0.9762055 0.9762055
## [21] 0.9762055 0.9762055 0.9762055 0.9762055 0.9762055 0.9762055 0.9762055 0.9762055 0.9762055 0.9762055
## [31] 0.9762055 0.9762055 0.9762055 0.9762055 0.9762055 0.9762055 0.9762055 0.9762055 0.9762055 0.9762055

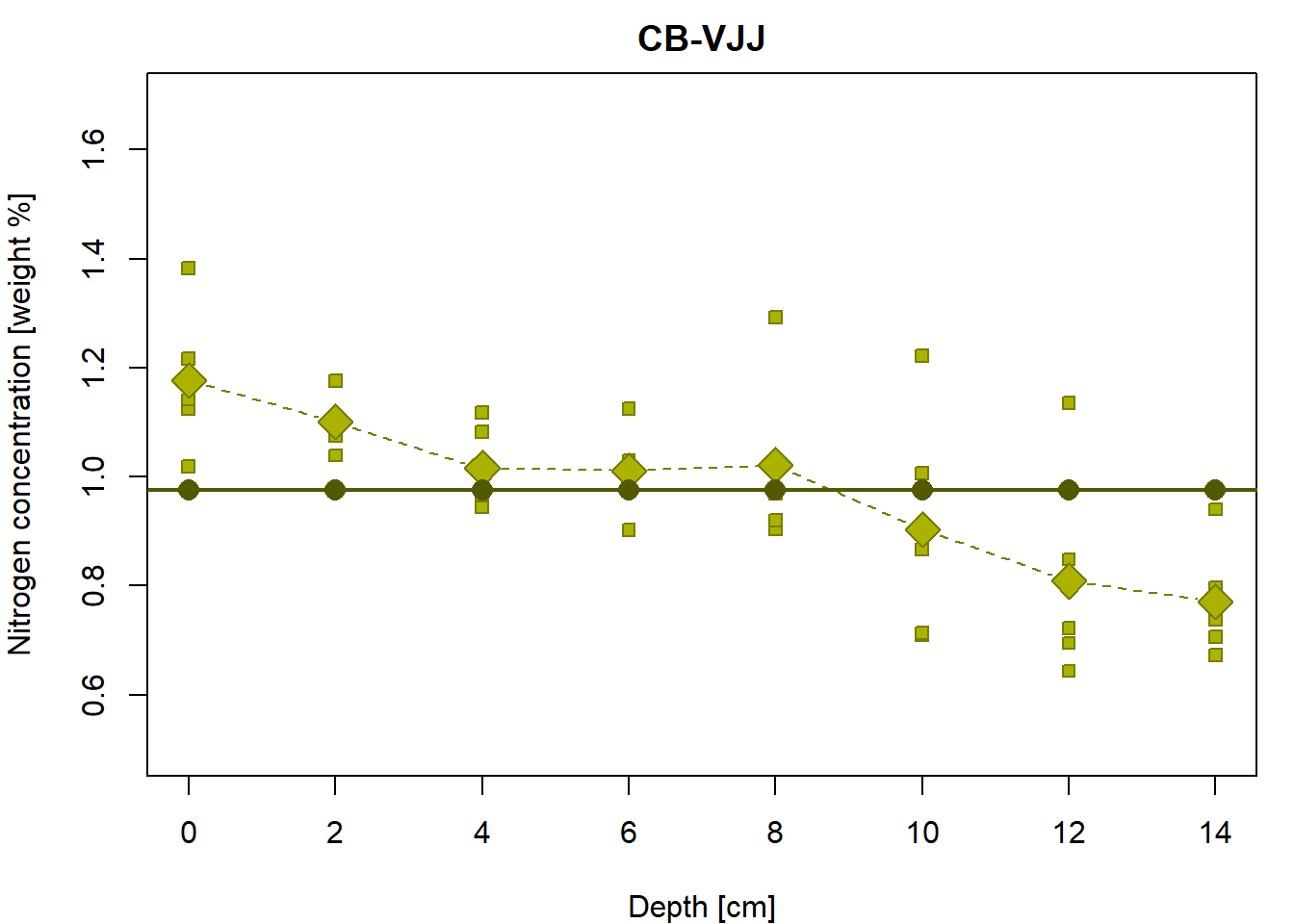

par(mfrow = c(1,1), mar = c(4,4,2,1))
# the underlying data
plot(Yvalues ~ Xvalues, pch = PCH[g], col = COL[g], bg = BGC[g],
     xlab = XLAB, ylab = YLAB, main = g, xlim = XLIM, ylim = YLIM)
# empirical group means
lines(tabs[[g]][, "Depth"], tabs[[g]][, "Mean"], type = "b",
      pch = 23, lty = 2, cex = 2, col = COL[g], bg = BGC[g])
# regression line given by the LS estimates (for the specific values of depth)
points(constant(coef(fit0)[1], Xvalues) ~ Xvalues,
       pch = 16, col = DARK[g], bg = BGC[2], cex = 1.5)
# regression line by the 'lm()' function (for the whole real line)
abline(fit0, col = DARK[g], lwd = 2)

Do you see any relationship with the following?

mean(Yvalues)           # beta coefficient
## [1] 0.9762055
sd(Yvalues)             # residual standard error
## [1] 0.1827673
sd(Yvalues)/sqrt(n)     # estimated sd of beta
## [1] 0.02889805

Total sum of squares:

deviance(fit0)          # SST (= RSS of fit0)
## [1] 1.302752
sum((Yvalues - mean(Yvalues))^2)
## [1] 1.302752

Overall F-test (once more):

summary(fit1)
##
## Call:
## lm(formula = N ~ depth, data = peat, subset = (group == g))
##
## Residuals:
##      Min       1Q   Median       3Q      Max
## -0.19491 -0.09226 -0.01956  0.05038  0.34374
##
## Coefficients:
##              Estimate Std. Error t value Pr(>|t|)
## (Intercept)  1.169069   0.038191  30.611  < 2e-16 ***
## depth       -0.027552   0.004565  -6.036 5.08e-07 ***
## ---
## Signif. codes:  0 '***' 0.001 '**' 0.01 '*' 0.05 '.' 0.1 ' ' 1
##
## Residual standard error: 0.1323 on 38 degrees of freedom
## Multiple R-squared:  0.4895, Adjusted R-squared:  0.476
## F-statistic: 36.43 on 1 and 38 DF,  p-value: 5.083e-07
anova(fit0, fit1)
## Analysis of Variance Table
##
## Model 1: N ~ 1
## Model 2: N ~ depth
##   Res.Df    RSS Df Sum of Sq      F    Pr(>F)
## 1     39 1.3028
## 2     38 0.6651  1   0.63765 36.432 5.083e-07 ***
## ---
## Signif. codes:  0 '***' 0.001 '**' 0.01 '*' 0.05 '.' 0.1 ' ' 1

Compare to standard correlation test:

cor.test(Xvalues, Yvalues)
##
##  Pearson's product-moment correlation
##
## data:  Xvalues and Yvalues
## t = -6.0359, df = 38, p-value = 5.083e-07
## alternative hypothesis: true correlation is not equal to 0
## 95 percent confidence interval:
##  -0.8301961 -0.4962622
## sample estimates:
##        cor
## -0.6996175

Depth-as-factor model for the group “CB-VJJ”

Compare fit0 and fit1 with the model where each depth level is considered separately:

(fit2 = lm(N ~ -1 + as.factor(depth), data = peat, subset = (group == g)))
##
## Call:
## lm(formula = N ~ -1 + as.factor(depth), data = peat, subset = (group ==
##     g))
##
## Coefficients:
##  as.factor(depth)0   as.factor(depth)2   as.factor(depth)4   as.factor(depth)6   as.factor(depth)8
##             1.1769              1.1012              1.0153              1.0114              1.0216
## as.factor(depth)10  as.factor(depth)12  as.factor(depth)14
##             0.9036              0.8086              0.7710

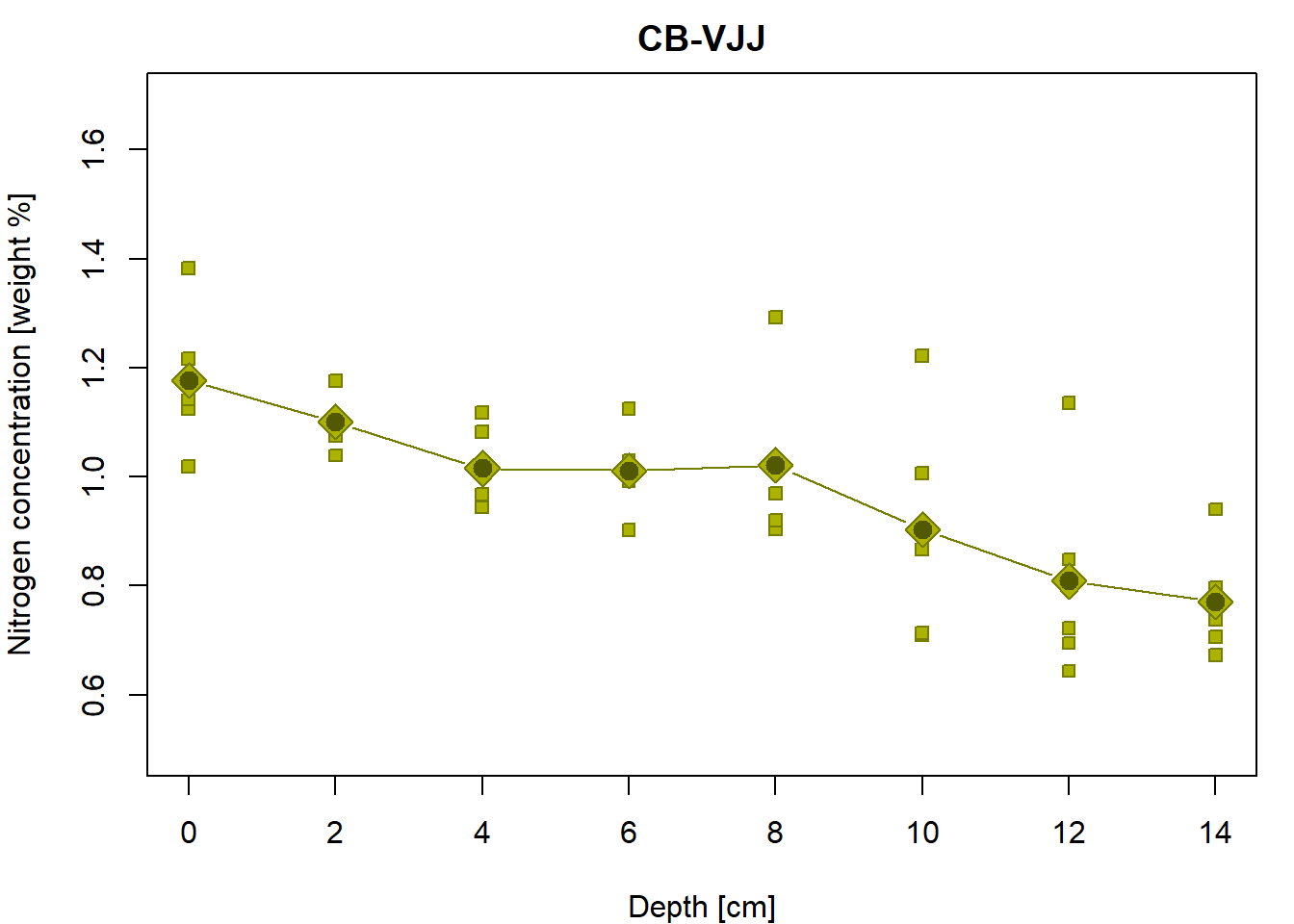

par(mfrow = c(1,1), mar = c(4,4,2,1))
# the underlying data
plot(Yvalues ~ Xvalues,pch = PCH[g], col = COL[g], bg = BGC[g],
     xlab = XLAB, ylab = YLAB, main = g, xlim = XLIM, ylim = YLIM)
# empirical group means
lines(tabs[[g]][, "Depth"], tabs[[g]][, "Mean"], type="b",
      pch = 23, cex = 2, col = COL[g], bg = BGC[g])
# regression line given by the LS estimates (for the specific values of depth)
points(subset(peat, group==g)$depth, fitted(fit2), pch=20, cex=2, col=DARK[g])

Is it possible to judge (just visually) from the third column whether one assumption of the classical linear model is satisfied? Which assumption?

print(tabs[[g]])
##   Depth      Mean    Std.Dev n
## 1     0 1.1769177 0.13512002 5
## 2     2 1.1011507 0.05042430 5
## 3     4 1.0153398 0.07849447 5
## 4     6 1.0113715 0.08000427 5
## 5     8 1.0215852 0.15842290 5
## 6    10 0.9036023 0.21677703 5
## 7    12 0.8086419 0.19742942 5
## 8    14 0.7710349 0.10510728 5

Individual work

Additional material

In some situations (especially if there are lot of data points and no reasonable insight can be made by using a standard plot) a jittered version may be used instead. In this case the depth is randomly shifted by an amount from a uniform distribution on \([-0.5,+0.5]\).

set.seed(123456789)
peat[, "jdepth"] <- peat[, "depth"] + runif(nrow(peat), -0.5, 0.5)
summary(peat)
##     group          N              depth            jdepth
##  CB    :35   Min.   :0.4989   Min.   : 0.000   Min.   :-0.4887
##  CB-VJJ:40   1st Qu.:0.8992   1st Qu.: 4.000   1st Qu.: 3.9183
##  VJJ   :33   Median :1.0343   Median : 8.000   Median : 7.8266
##  VJJ-CB:40   Mean   :1.0766   Mean   : 7.527   Mean   : 7.5224
##              3rd Qu.:1.2440   3rd Qu.:12.000   3rd Qu.:11.6579
##              Max.   :1.6921   Max.   :14.000   Max.   :14.4483

Another plot, this time with the jittered depth:

par(mfrow=c(1,1), mar=c(4,4,0.5,0.5))
plot(N ~ jdepth, data = peat,
     xlab = XLAB, ylab = YLAB, xaxt = "n",
     pch = PCH[group], col = COL[group], bg = BGC[group])
axis(1, at = seq(0, 14, by = 2))
abline(v = seq(1, 13, by = 2), col = "gray", lty = 5, lwd = 2)
legend(1.3, 1.7, legend = levels(peat$group), pch = PCH, col = COL,
       pt.bg = BGC, y.intersp = 1.2)

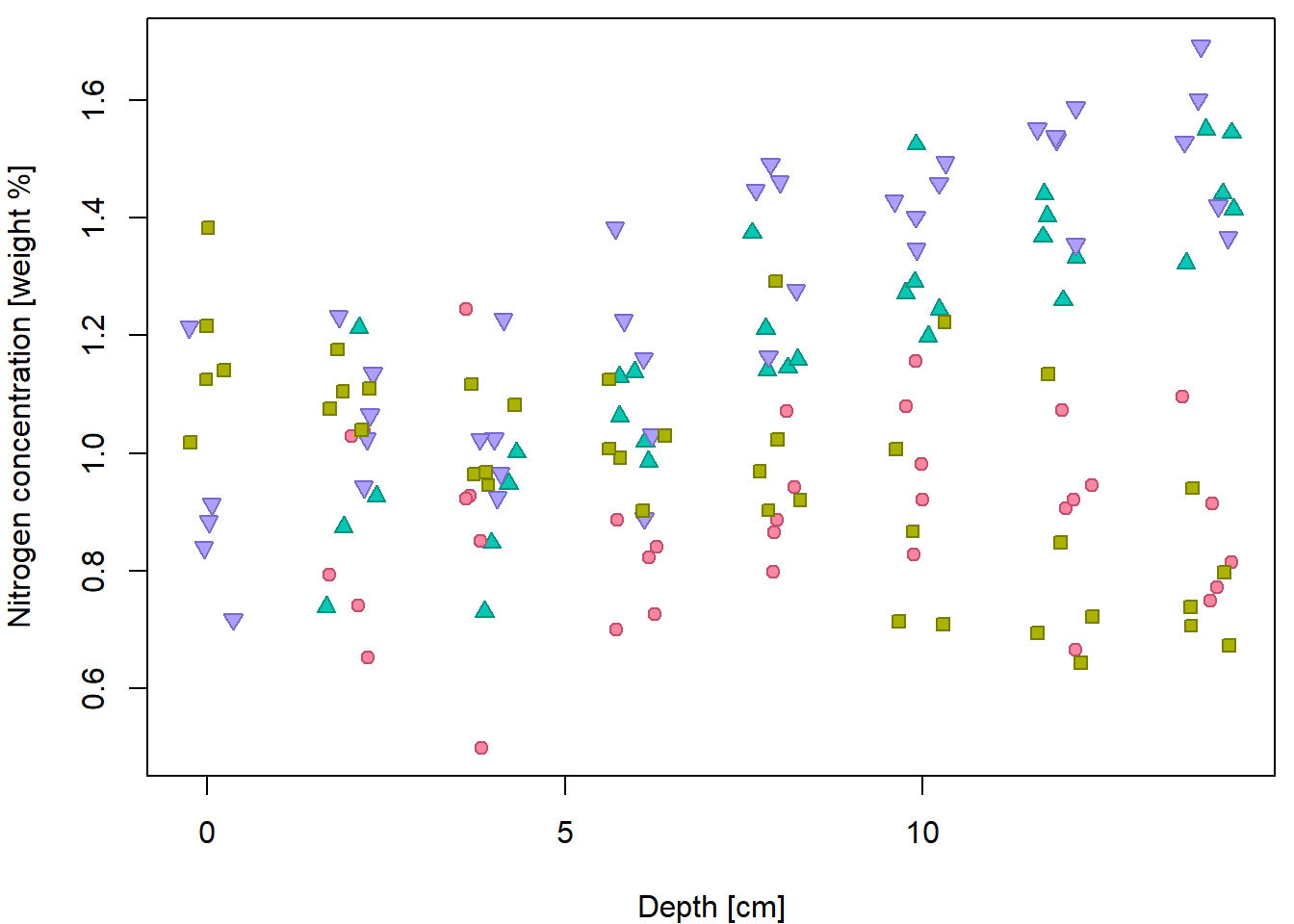

Similar plot using an R function jitter:

par(mfrow=c(1,1), mar=c(4,4,0.5,0.5))
plot(N ~ jitter(depth), data = peat,
     xlab = XLAB, ylab = YLAB,
     pch = PCH[group], col = COL[group], bg = BGC[group])
